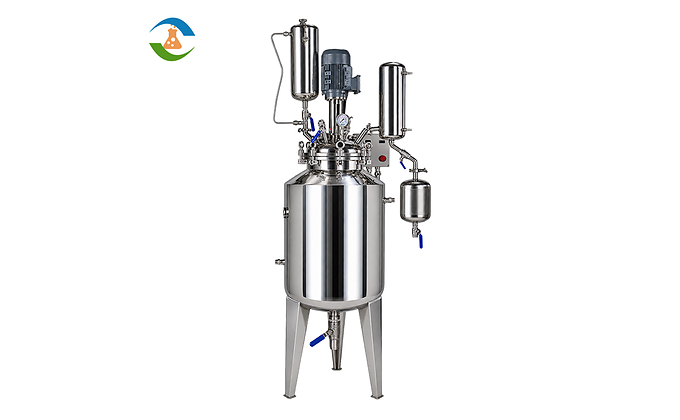

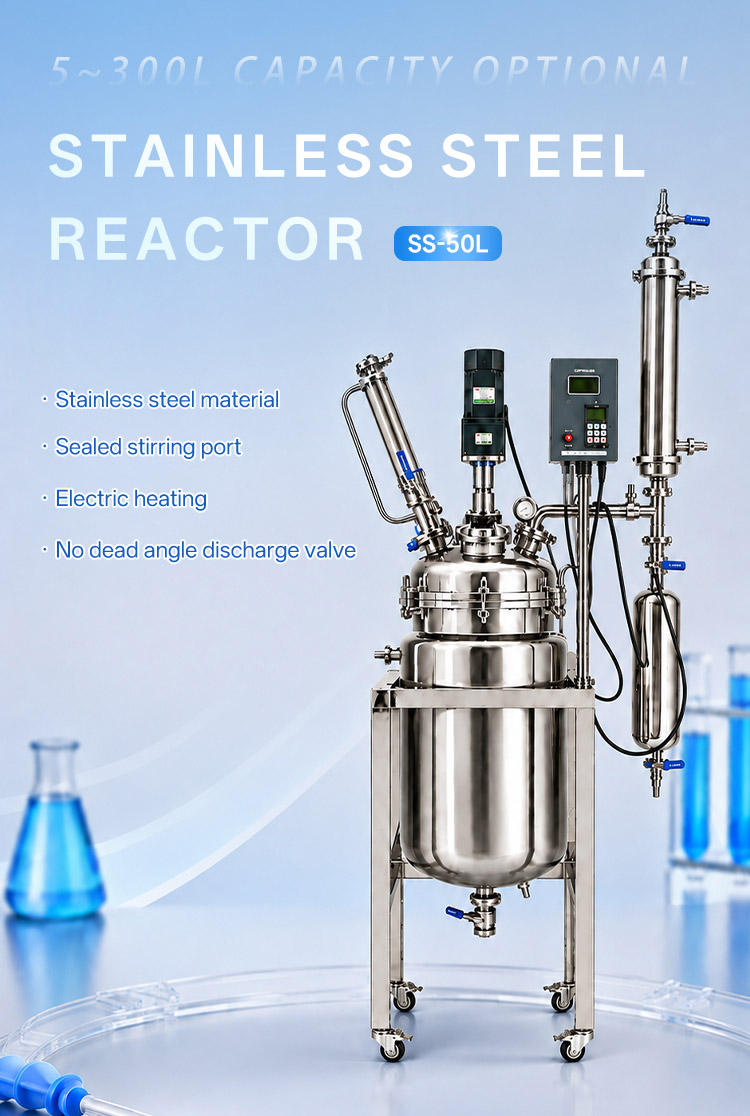

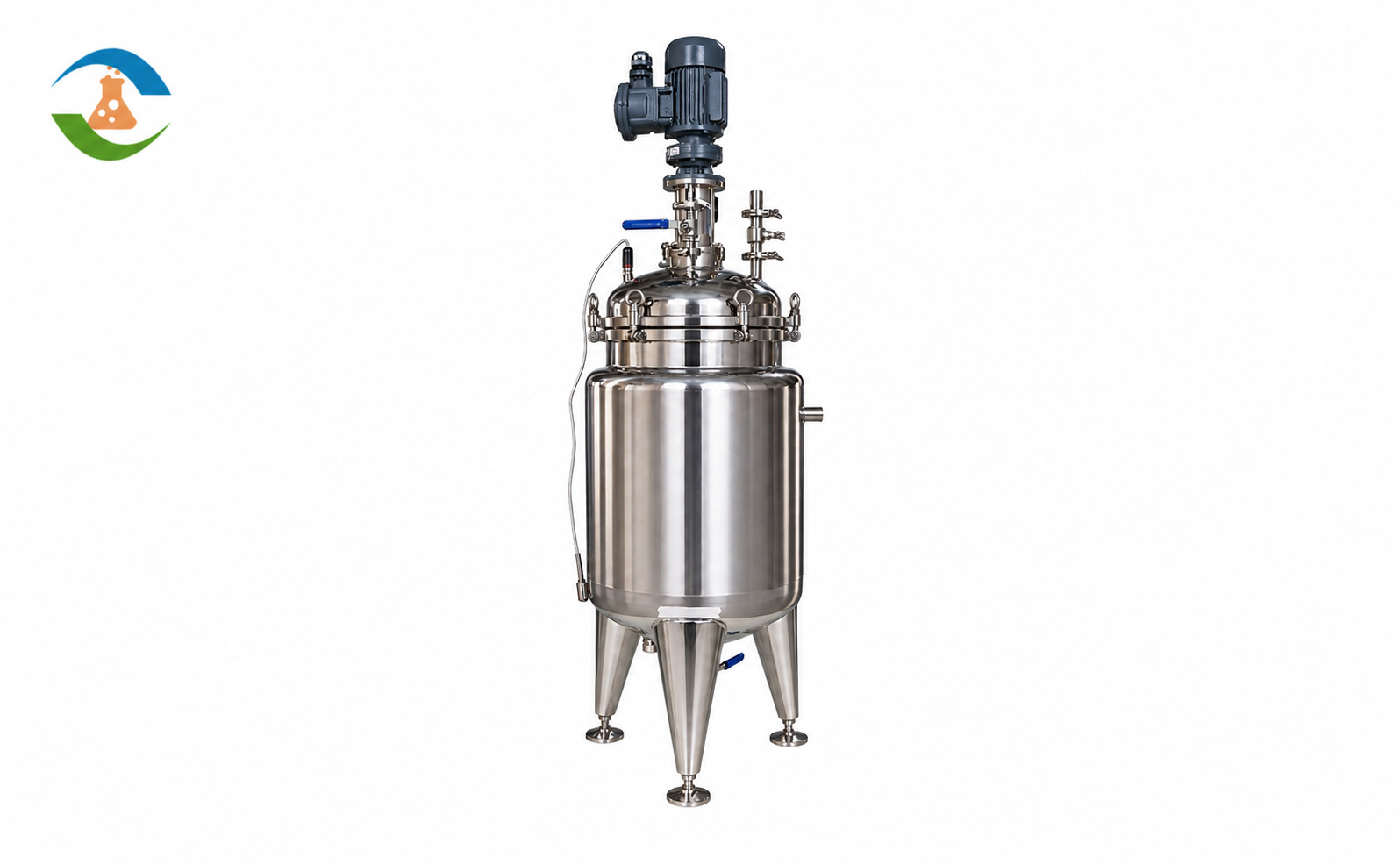

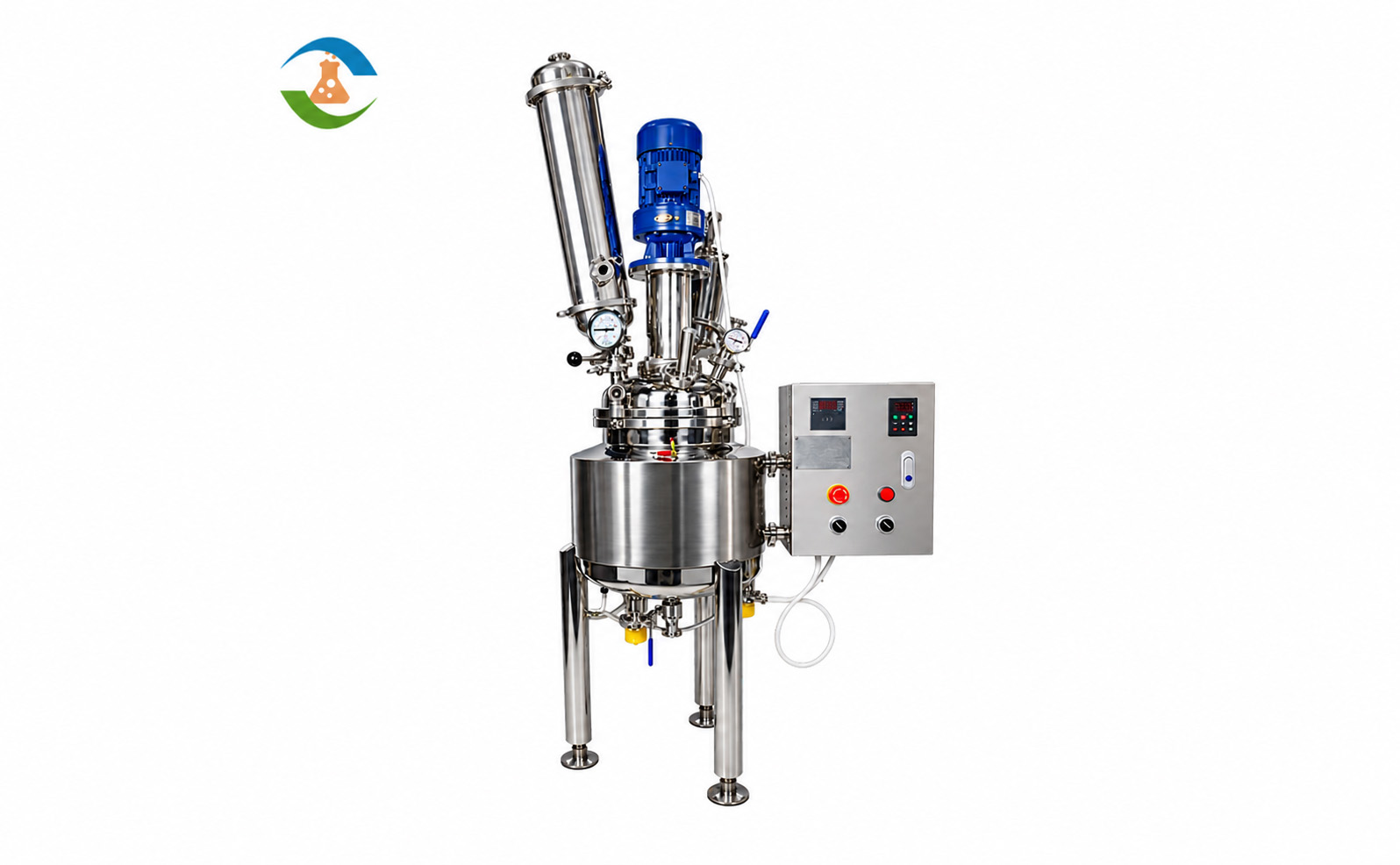

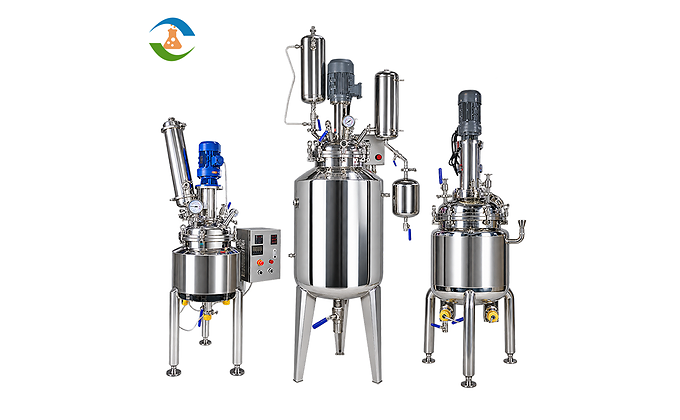

The stainless steel jacketed reactor is a double-layer stainless steel design,also called stainless steel mixing tank. The inner layer can be put into a reaction solvent for stirring reaction, and the interlayer can be connected to different cold and heat sources (refrigerated liquid, hot water or hot oil) for cyclic heating or cooling reaction. It is a modern fine chemical factory, biopharmaceutical and Ideal pilot and production equipment for the synthesis of new materials.
The purpose of stainless steel jacketed reactor
Our stainless steel reactors are used in the production process of pharmaceutical, decarboxylation, decarb, crystallization, decarb, decarboxylation and other processes in pharmaceutical, chemical, food, light industry and other industries.

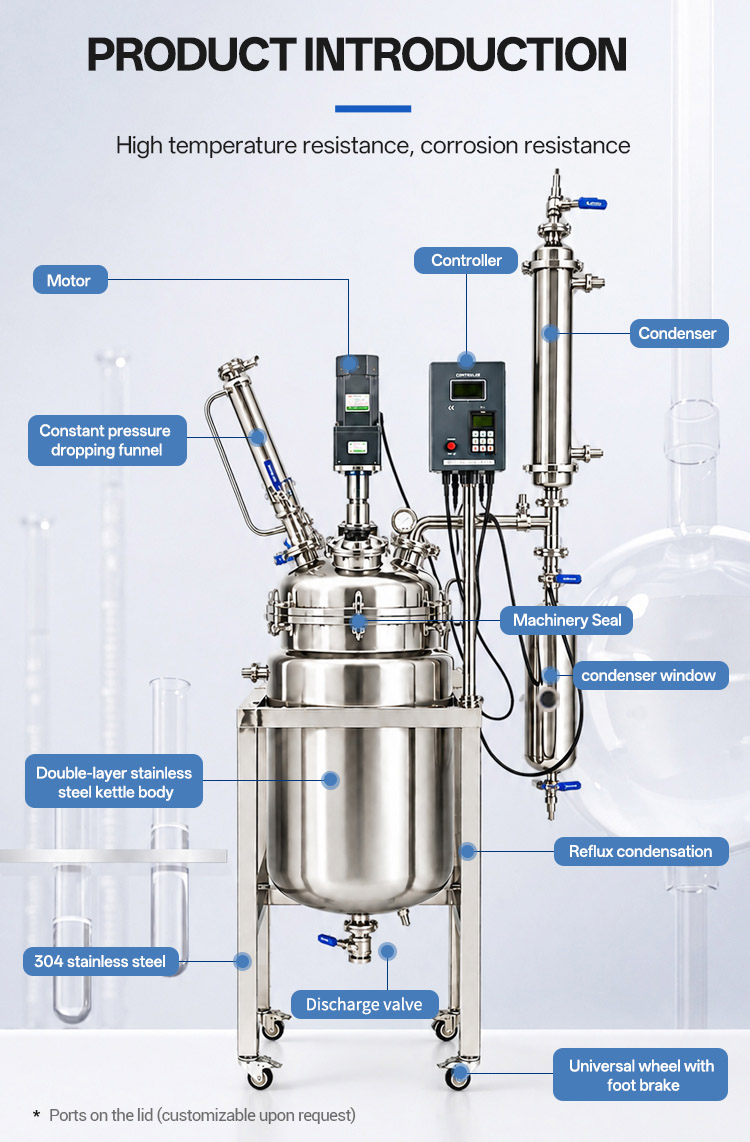

Features of stainless steel jacketed reactor
The stainless steel jacketed reactor uses 304 stainless steel tube as the frame, adopts 316 stainless steel body, and is equipped with PTFE.
The filter bottom plate is also composed of components such as motor and frequency conversion regulator.

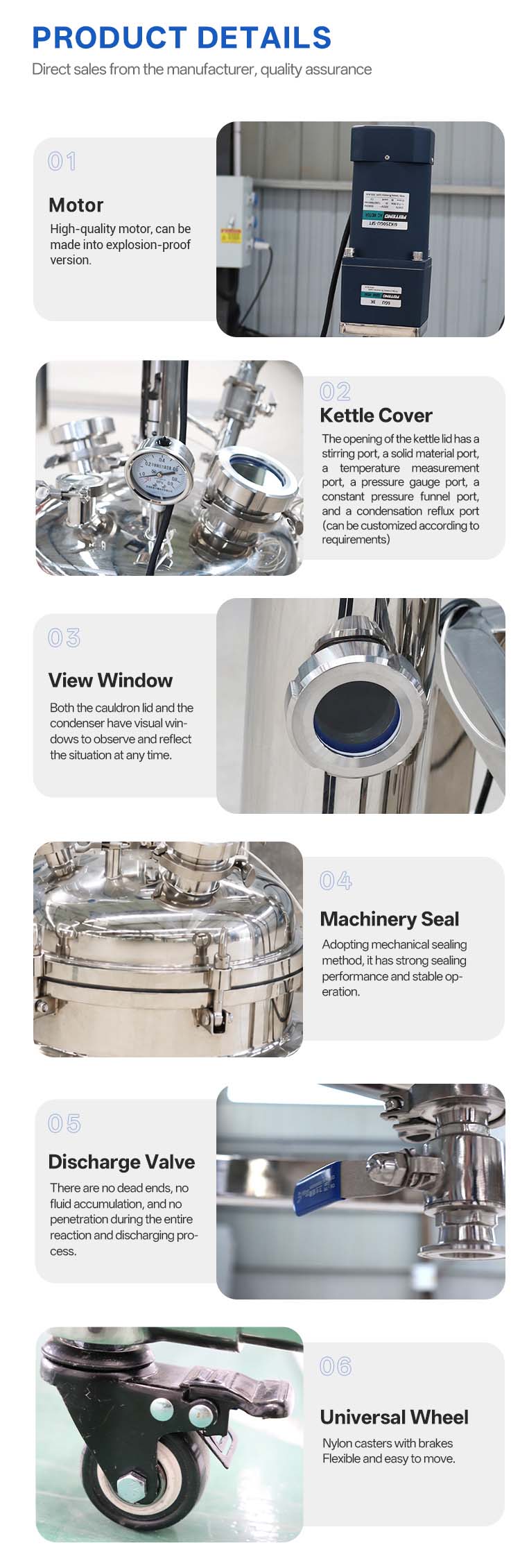

Stainless steel jacketed reactor body
316 stainless steel kettle body, high temperature resistance, acid and alkali resistance.
Multifunctional kettle cover
The quick-release multi-function kettle cover has the functions of feeding, temperature measurement, mechanical seal shaft, exhaust and other functions.
PTFE filter base
Easy to disassemble, clean and replace.
Motor
According to the viscosity of the material, the power can be selected, the reduction ratio can be increased, and the DC brushless motor can be selected.

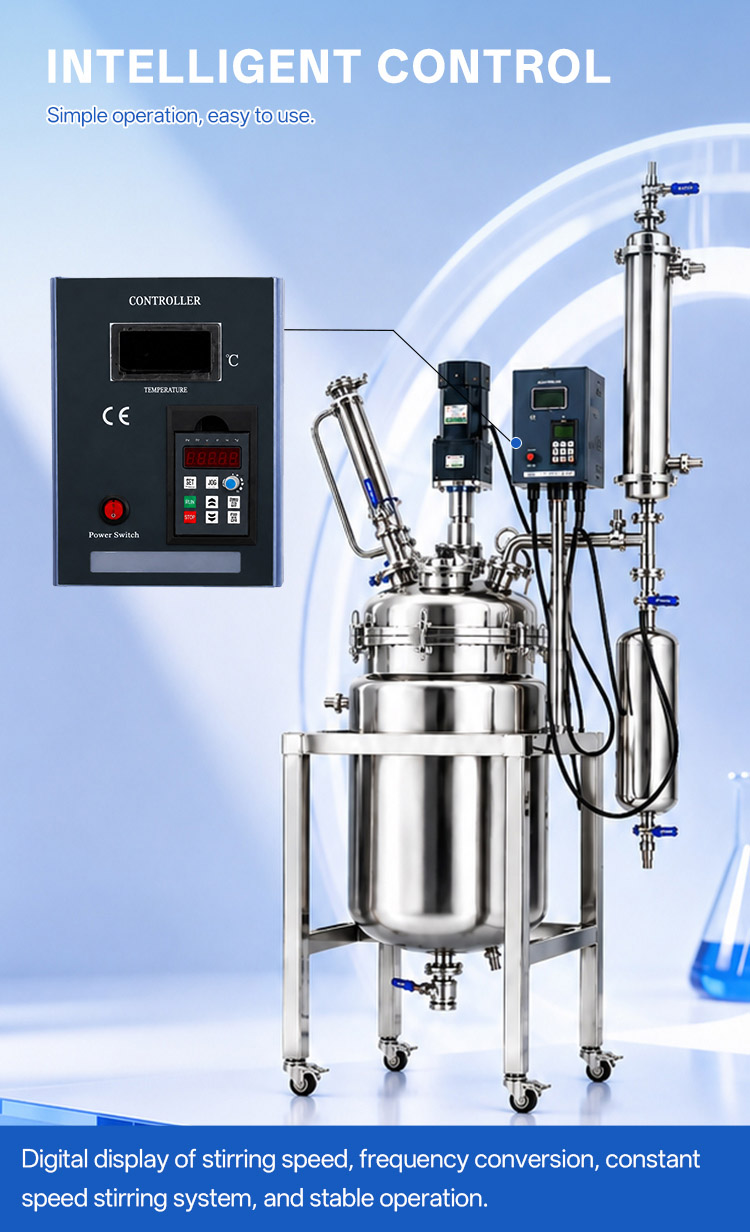

Inverter regulator
The speed of the stirring paddle is displayed in real time and can be adjusted according to the material viscosity and reaction needs.
Our customer use cases
Warehouse in USA | Canada | Spain | Thailand
We have warehouses in the United States (Los Angeles), Canada (Vancouver), Spain (Valencia), Thailand (Bangkok), and have a large inventory,no matter which country you are in, you are guaranteed to receive the goods as quickly as possible.
Why choose us？
1）Stainless steel jacketed reactors now in stock with fast delivery.
2) Various capacities for choice.
3) With 13 years of experience in R&D and production of SS reactor.
4) provide you with premium quality products and perfect after-sales service.
5) Premium quality with CE certification.
6) Factory direct sales with competitive price.
7) Provide one-stop Extraction Turnkey Solution.

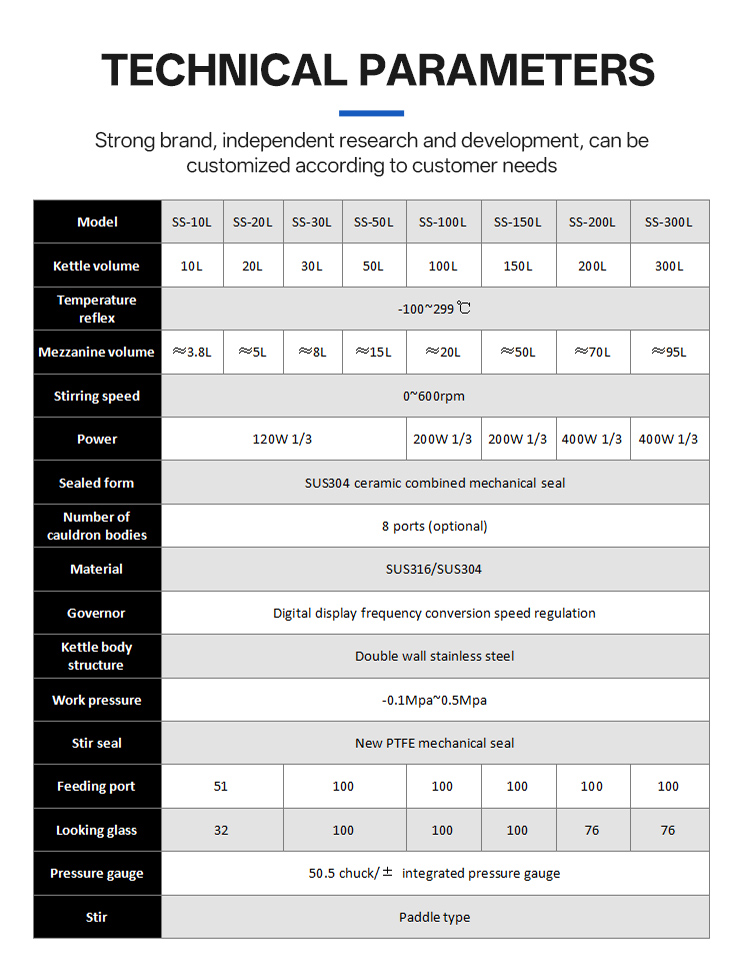

Parameter

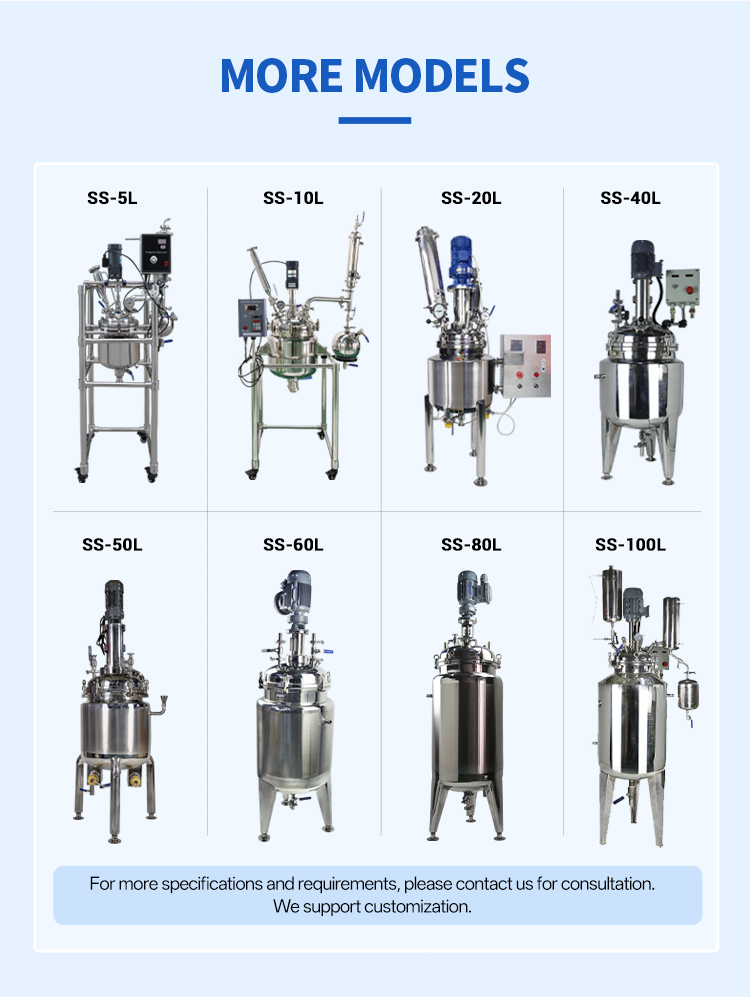

Model | Power (W) | Stirring rate (r/min) | Capacity (L) |
SS-5L | 120 | 0~1000 | 5L |
SS-20L | 240 | 0~1000 | 20 |
SS-50L | 240 | 0~500 | 50 |
SS-60L | 370 | 0~500 | 60 |
SS-80L | 370 | 0~500 | 80 |
SS-100L | 400 | 0~500 | 100 |
SS-500L | 1100 | 0~350 | 500 |
